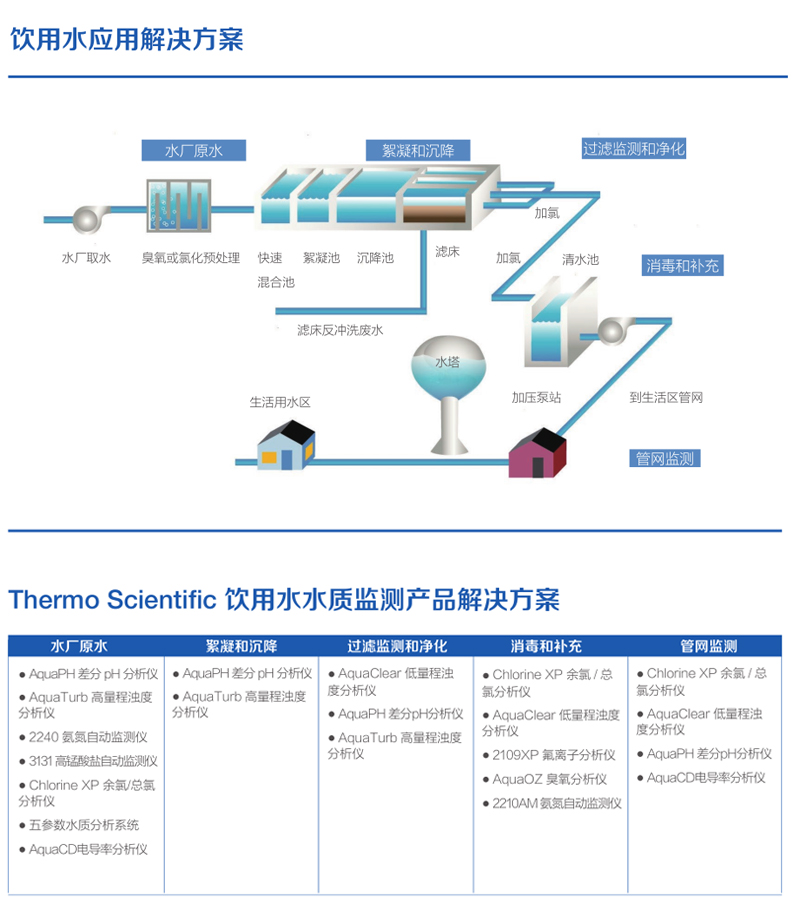

Drinking-water monitoring from intake and treatment to the distribution network, preserving the process stages and instrument selections shown in the original Thermo Scientific application diagram.
- Raw-water intake → ozone or chlorine pretreatment
- Rapid mixing → flocculation → sedimentation
- Filter beds → chlorination → clear-water storage
- Booster pumping → water tower → distribution network → consumers
- Filter-bed backwash wastewater
Raw water
AquaPH differential pH; AquaTurb high-range turbidity; 2240 ammonia-nitrogen monitor; 3131 permanganate-index monitor; Chlorine XP residual/total chlorine; five-parameter water-quality monitoring system; AquaCD conductivity.
Flocculation and sedimentation
AquaPH differential pH; AquaTurb high-range turbidity.
Filtration monitoring and purification
AquaClear low-range turbidity; AquaPH differential pH; AquaTurb high-range turbidity.
Disinfection and replenishment
Chlorine XP residual/total chlorine; AquaClear low-range turbidity; 2109XP fluoride; AquaOZ ozone; 2210AM ammonia-nitrogen monitor.
Distribution network
Chlorine XP residual/total chlorine; AquaClear low-range turbidity; AquaPH differential pH; AquaCD conductivity.
