After looking at it, you'll be able to operate the smoke analyzer very simply!

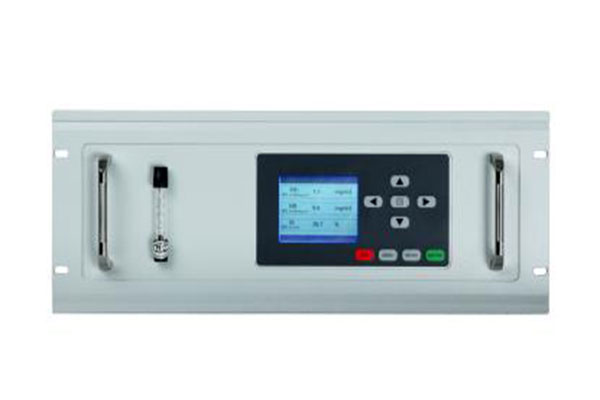

　　Frozen gas analyzers are equipment for measuring the flue content of CO2, CO, NOx, SO2, etc., using continuous analysis of electrochemical sensors. Mainly for small-scale fuel, gas boilers or hand-held use for environmental monitoring near sources of pollution. Depending on the mode of use, it can be divided into handheld flue gas analyzers and fixed-line recorders.

　　Motion of work:

　　There are two working principles commonly used in flue gas analyzers, one for electrochemical work and another for infrared work.

　　1 EGC sensors: The gas to be detected is removed through dust, damp into the sensor room, enters the cell through the permeable membrane, so that the gas that is diffused in the electrolytic fluid is electrolyzed at the specified oxidation level, and concentrations of its gases are derived from the electrolytic current that is consumed.

　　2. Infrared sensors: Analysis of gas composition and content using principles of special absorption properties for the electromagnetic energy of infrared wavelengths using different gases.

　　The flue gas analyzer is simple to operate:

　　Do all the operations directly using the OK key. You only have to press OK twice between start and start the measurement.

　　Using a large screen LCD monitor, all measurements are clear. Special function keys change character size to allow easy viewing of the measurements.

　　The two-purpose, single-charged operation of six consecutive hours is well suited to work on the industrial site.

　　A self-diagnostic function that automatically alerts in case of failure (e.g. sensor failure, unreliable plug-in contact, excess range, etc.) and indicates the location of the failure. It is easy to maintain.

　　When the concentration of CO is excessive, the airway is automatically disconnected and the sensor is flushed with a back-up gas pump to extend its useful life.

　　The instruments contain 1,500 data sets and 1GB MMC storage cards, automatically store measurement data and generate EXCEL format files, and the instrument contains high-speed heat-sensitive printers to print measurements at any time.

　　User-defined storage time, automatic sampling, measurement, storage and printing of averages of measured data and given time periods.

　　Detectives (high-temperature probes, bend probes, porous probes) and lengths (0.75 m, 1.0 m, 1.5 m, 2.0 m) ensure adaptation to different field test environments.

　　Certification through German certification and China Metrology Type (PA 2009-C112).
