42i Nitrogen Oxides Analyzer
Applications
Use chemiumscence • Working reliable, effective • Analysis of several ppb to 100 ppm of nitrogen oxides • Fault diagnostic features to show the instrument's immediate operating state parameters • Remote operation with Internet connection
Product Description Specifications
• Adoption of chemiumscence technology
:: Work is reliable and effective
● How many can be analyzed? ppb Present. 100ppm Nitrogen oxide
• The malfunction diagnostic function shows the immediate operational status parameters of the instrument
• Remotely operated Internet connection

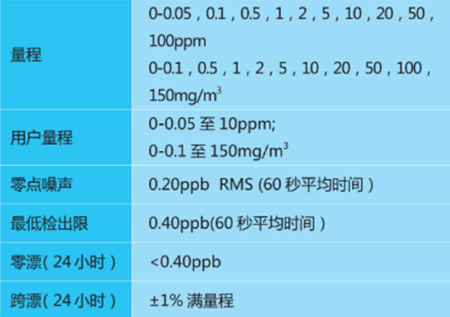

42i nitrogen oxides (NO-NO2-NOX) analyzer
Measuring Range
0-0.05,0.1,0.2,0.5,1,2,5,10,20,50,100ppm
0-0.1,0.2,0.5,1,2,5,10,20,50,100,150,mg/m3
Zero noise.
0.20 ppb RMS (60 average time of seconds ）
Minimum test limit
0.40 ppb (60 average time of seconds ）
Zero drift (24 hours)
<0.40ppb
Cross-float (24 hours)
±1% Full Scale
42i-LS Nitrogen oxides (NO-NO2-NOX) analyzer
Measuring Range
0-0.2,0.5,1,2,5,10,20,50,100,200,500ppm
0-0.5,1,2,5,10,20,50,100,200,500,750mg/m3
Zero noise.
<0.005 ppm RMS (60 average time of seconds ）
Minimum test limit
0.01 ppm (60 average time of seconds ）
Zero drift (24 hours)
0.005 ppm
Cross-float (24 hours)
±1% Full Scale
42i-TL Type tracer nitrogen oxides (NO-NO2-NOX) analyzer
Measuring Range
0-5,10,20,50,100,200,500,1000 ppb
0-10,20,50,100,200,500,1000,2000 μg/m3
Zero noise.
< 25 ppt RMS (120-second average time)
Minimum test limit
50 ppt (120-second average time)
Zero drift (24 hours)
I can ignore it.
Cross-float (24 hours)
±1% Full Scale
42i-HL High-Concentration Nitrogen Oxides (NO–NO2–NOX) Analyzer
Measuring Range
0-10,20,50,100,200,500,1000,2000,5000 ppm
0-20,50,100,20,500,750,1000,2000,5000,7500 mg/m3
Zero noise.
25 ppb
Minimum test limit
50 ppb
Zero drift (24 hours)
50 ppb
Cross-float (24 hours)
±1% Full Scale
