The new product is on the market, and the VOC CEMS product, Thermo Fisher 6000, has hit.The problem of ozone pollution in our country is growing and has become an important factor affecting summer air quality, and volatile organic matter (VOCs) is an important precursor to ozone formation. To control ozone pollution effectively, excess emissions from sources of volatile organic matter (VOCs) need to be controlled.
Depending on the distribution of the industry, various provinces and municipalities have developed local standards and regulations that place specific requirements for the governance and emission compliance of Vocs in key sectors such as petrochemic, organic chemicals, industrial coating and packaging printing. In order to further regulate the technology and market of the VOCs Online Continuous Monitoring System for Fixed Pollution Sources (VOC CEMS), the Ministry of Ecology released the standard document Technical Requirements and Test Methods for the Permanent Monitoring System for Fixed Pollution Sources (HJ 1013-2018) at the end of 2018, which was officially implemented in July 2019.

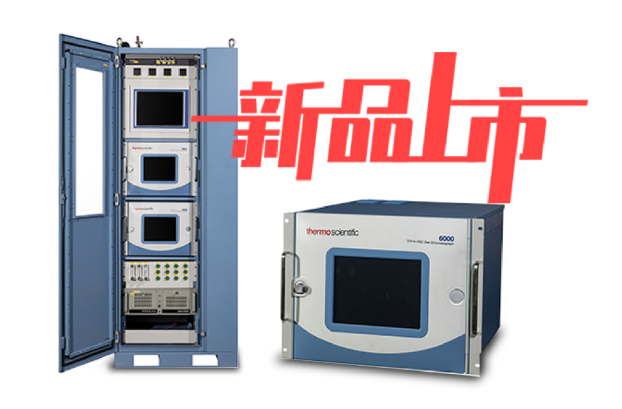

In the context of the increased demands placed on instrumentors by the introduction of the new standards, Thermo Fisher has taken the lead in launching a new generation of VIC CEMS-type products, continuing to lead the industry. Type 6000 Vocs CEMSIt's coming up!

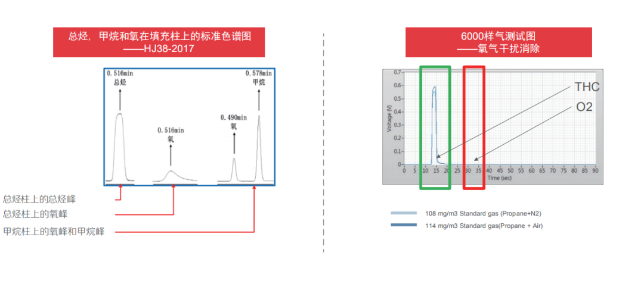

Thermo Scientific 6000 fixed sources Continuous monitoring system for volatile organic emissions The four leading edges of the brand-new 6000 VOC CEMS product :: Unique technologyReduce oxygen interference. Large lead country bid requirements to meet future upgrade needs Increased electronic pressure control (EPC) modules and atmospheric balance valves Airways are better and measurements are more stable and accurate. It's hotter and colder all the way. avoid condensation and corrosion, improve instrument durability and reduce maintenance costs Direct flame temperature detection technology, significantly reducing response time for fire outburst To prevent hydrogen leaks and improve product safety Features of the New Model 6000 VOC CEMS 01 Thermo Fisher's unique technique to avoid the disadvantages of deductions and avoid oxygen peaks at peaks.（ Oxygen interference is less than 1%F.S.， Better than national standards. 2% Limitations ）
02 Full heating without cold spots and EPC air route improvement design with better product performance

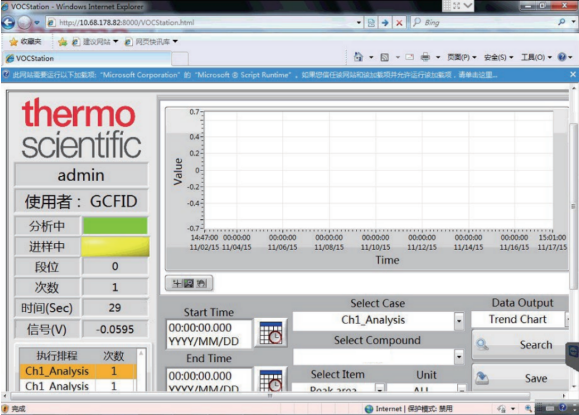

03 Direct temperature detection techniques and remote operation functions to enhance on-site maintenance and safety

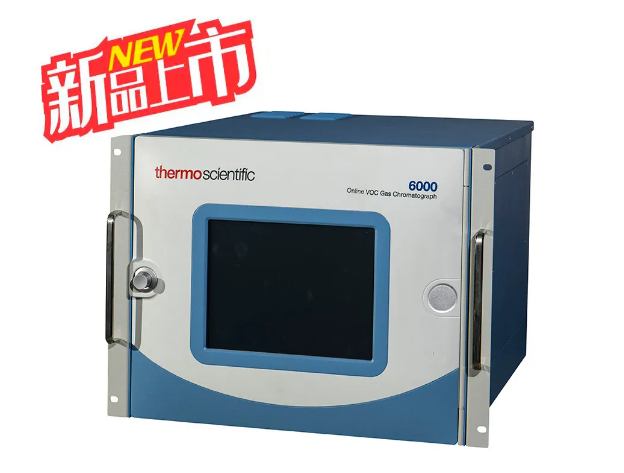

New Model 6000 gas chromatograph

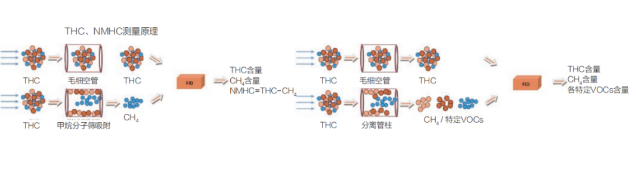

Rationale Gas samples are pumped from a sample pump into an inhaling instrument, and the samples are separated using a separation tube in the cylinder through the propulsion of the carrying gas; The separated organic matter enters the flame ionization detector in sequence, is ionized into carbon anion and electronics in hydrogen flames, producing microelectric currents that output signals through a signal amplifier, from which the mapping analysis software calculates the concentration of the components.
System characteristics Based on thermal measurement design and composition, the analyzer may have an acceptable sample temperature of up to 220°C It's gonna make it work.
Zoom range.
• Time for analysis is rapid and meets both the continuity requirements for compliance and the process control requirements for the treatment equipment. • Calibration
◼ Rapid sample replacement for real-time monitoring
With regard to the monitoring challenges of Vocs, one of the sources of the ozone pollution problem, our Division has launched a new VIC CEMS product of 6,000, which effectively helps clients to address the monitoring challenges and achieve efficiency and ease in the monitoring process. |
